ดอกสว่าน ไฮสปีด เจาะเหล็ก ก้านตรง (นิ้ว) - Straight Shank Drills (Inch) - Nachi
| ขนาด Dia. (นิ้ว) |

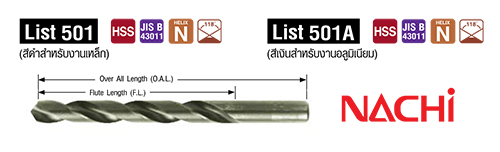

Flute Length (นิ้ว) |
Over All Length (นิ้ว) |
บรรจุ |
|---|---|---|---|
| 1/64 | 3/16 | 3/4 | 10 |
| 1/32 | 1/2 | 1-3/8 | 10 |
| 3/64 | 3/4 | 1-3/4 | 10 |
| 1/16 | 7/8 | 1-7/8 | 10 |
| 5/64 | 1 | 2 | 10 |
| 3/32 | 1-1/4 | 2-1/4 | 10 |
| 7/64 | 1-1/2 | 2-5/8 | 10 |
| 1/8 | 1-5/8 | 2-3/4 | 10 |
| 9/64 | 1-3/4 | 2-7/8 | 10 |
| 5/32 | 2 | 3-1/8 | 10 |
| 11/64 | 2-1/8 | 3-1/4 | 10 |
| 3/16 | 2-5/16 | 3-1/2 | 10 |
| 13/64 | 2-7/16 | 3-5/8 | 10 |
| 7/32 | 2-1/2 | 3-3/4 | 10 |
| ขนาด Dia. (นิ้ว) |
Flute Length (นิ้ว) |
Over All Length (นิ้ว) |
บรรจุ |
|---|---|---|---|
| 15/64 | 2-5/8 | 3-7/8 | 10 |
| 1/4 | 2-3/4 | 4 | 10 |
| 17/64 | 2-7/8 | 4-1/8 | 10 |
| 9/32 | 2-15/16 | 4-1/4 | 10 |
| 19/64 | 3-1/16 | 4-3/8 | 10 |
| 5/16 | 3-3/16 | 4-1/2 | 10 |
| 12/64 | 3-5/16 | 4-5/8 | 5 |
| 11/32 | 3-1/16 | 4-3/4 | 5 |
| 23/64 | 3-1/12 | 4-7/8 | 5 |
| 3/8 | 3-5/8 | 5 | 5 |
| 25/64 | 3-3/4 | 5-1/8 | 5 |
| 13/32 | 3-7/8 | 5-1/4 | 5 |
| 27/64 | 3-15/16 | 5-3/8 | 5 |
| 7/16 | 4-1/16 | 5-1/2 | 5 |
| 29/64 | 4-3/16 | 5-5/8 | 5 |
| 15/32 | 4-5/16 | 5-3/4 | 5 |
| 3/64 | 4-3/8 | 5-7/8 | 5 |
| 1/2 | 4-1/2 | 6 | 5 |
